Fong’s CBS Dyeing M/c /with full specification/Textile dyeing M/c
Fong’s CBS Dyeing M/c /with full specification/Textile dyeing M/c

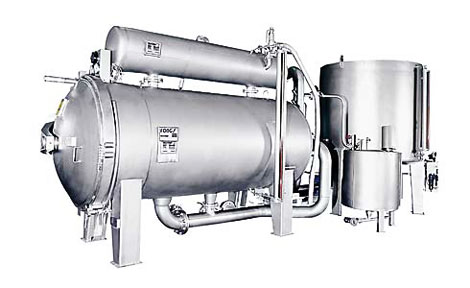

Fong’s CBS Dyeing M/c /with full specification
Type of Fibres
Polyester, microfibres, polyamide (nylon) etc.
Type of Fabrics
Woven material for decoration, warp knitted goods etc.
Capacity
48~1000kg per beam
Applications
For the pre-treatment, dyeing and after treatment of fabric winded on beams
General Description and Main Features
The CBS dyeing machine has a flow reversal device for dual flow process. Most
material can be successfully processed with inside out flow. The flow reversal
device provides the dual flow function to satisfy those materials that require
both inside out and outside out flow characteristic. Different kinds of
material can be processed; such as warp knitted goods and woven fabrics for
decoration etc. A horizontal kier design facilitates loading and unloading
operation. The beam is available with a liquid stop ring for reduced loading.
Advantages
Various standard kier sizes are available. Other sizes upon request
Beam with liquid stop ring for reduced loading operation
Fuzzy logic for accurate temperature control
Automatic flow control is selectable
Max. fabric width:2800 mm
Liquor ratio 1:10
